Toroid Transformer: When Does a Flex Lead Attachment Solve an Assembly Problem?
A toroid can meet all electrical requirements on the bench and still become a problem at the point of installation. The issue often appears late, when the wound component must coexist with boards, terminals, harnesses, enclosure hardware, and service access paths that were not included in the original winding calculation. Standard lead exits may force an awkward bend, leave too little reach for a secure connection, place tension on a solder joint, or create a routing path that does not match the final assembly sequence. At that stage, the transformer itself is not the problem; the termination format is.
Flex lead attachment solves this specific integration challenge by treating the lead termination as part of the component design rather than an afterthought. For a toroid transformer, that can mean attaching flexible leads that enable cleaner routing, controlled reach, easier connection at the next assembly point, and reduced strain where the lead transitions from the wound component to the larger product. We at Torelco approach flex lead attachment as a targeted manufacturing option for applications where a standard lead arrangement creates handling or connection constraints. The goal is not to change the purpose of the toroid, but to make the finished component easier to integrate reliably into the assembly for which it was built.

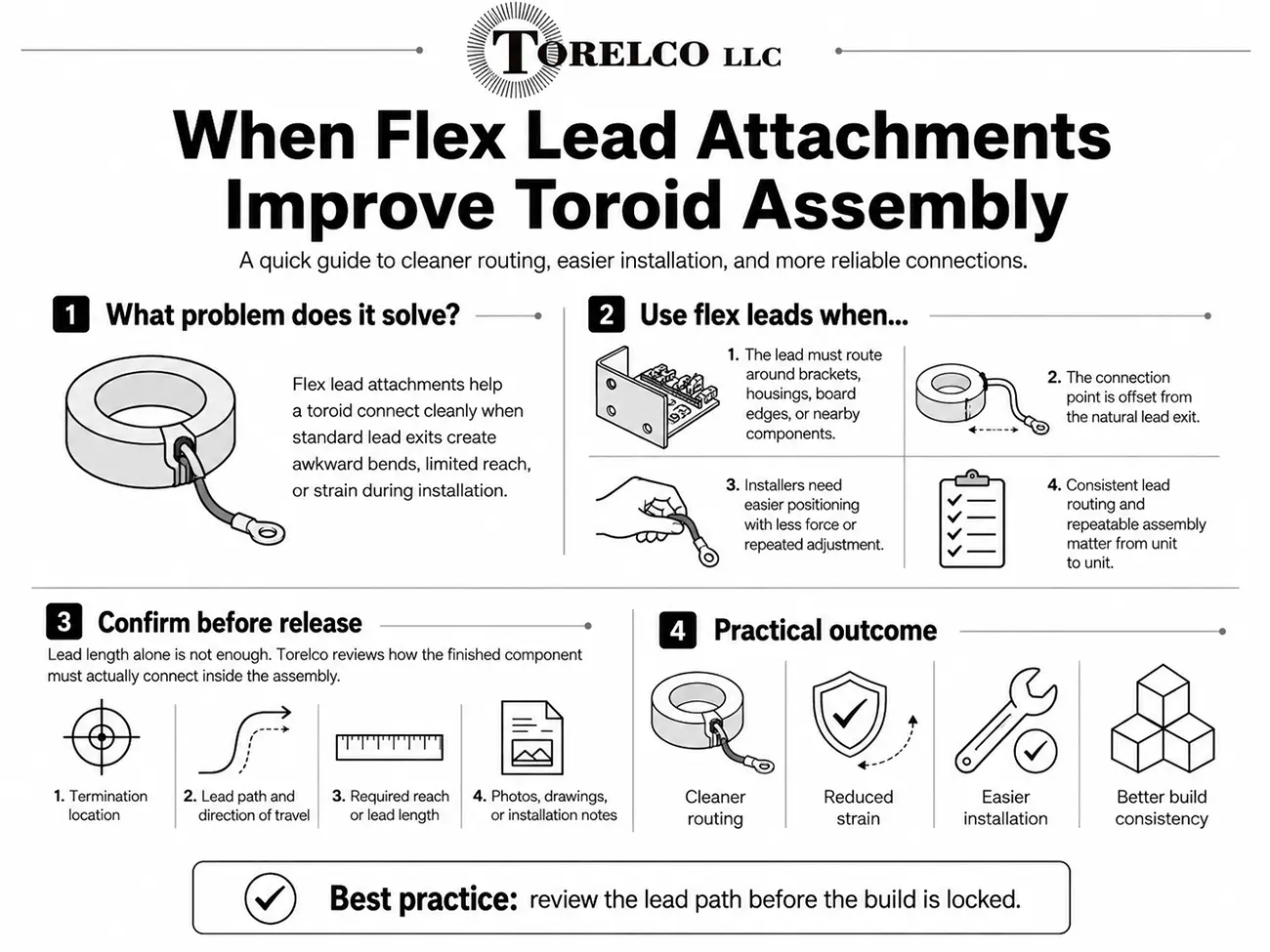

Assembly Situations That Justify Specifying Flex Leads
A flex lead attachment is the correct specification when the electrical connection point is not conveniently aligned with the toroid's lead exit. In many assemblies, the lead must travel around a neighboring part, follow a controlled path to a connector, or enter a terminal block from a specific direction. If the lead is forced into that path only during final assembly, the installer may have to twist, pull, or sharply reposition it, which can introduce unnecessary strain at the transition point. Specifying flex leads earlier allows that routing requirement to be incorporated into the component build rather than discovered at the bench.
Several recurring conditions usually indicate that the lead format should be reviewed before production release. These conditions tend to appear when geometry, access, and repeatability all affect the connection.
- The lead must bend around a bracket, housing feature, board edge, or adjacent component.
- The connection point is offset from the natural lead exit, requiring a predictable reach.
- The assembler needs a lead that can be positioned without excessive force or repeated adjustment.
- The design benefits from a more forgiving transition between the wound component and the next termination point.
Flex leads are also useful when repeatability matters from one unit to the next. A standard lead arrangement may be electrically acceptable, but still create extra handling if every assembler has to dress the leads slightly differently to make the connection. That kind of variability can slow production and make inspection less straightforward, especially when the lead path must remain clear of other assembly features. We at Torelco consider the intended termination location, the direction of travel, and the expected movement during installation before recommending a flex lead attachment.
The best time to specify this detail is before the toroid is released for production, because lead attachment is part of how the finished wound component interfaces with the customer's assembly. Our team can review where the connection must land and help determine whether the flex lead should support easier positioning, gentler handling, or better alignment with a defined termination point. In that sense, flex leads are not an afterthought; they are an integration choice that helps the component arrive ready for the way it will actually be installed.
Information to Confirm Before Requesting a Flex Lead Attachment
Before Torelco can recommend or build a flex lead attachment for a toroid, the most useful information is how the finished component must connect inside the customer's assembly. Lead length alone is rarely enough because the attachment must also support the direction of travel, the termination point, and the handling expected during installation. Our team views the flex lead as the interface between the wound component and the next assembly step, so the review should account for the details that govern how the installer will route and secure the connection.
|
Detail to Confirm |
Why It Matters for the Flex Lead Attachment |
|
Required lead length |
Helps prevent excess slack or a lead that cannot comfortably reach the connection point. |
|
Lead exit location |
Defines where the lead should leave the toroid for the cleanest routing path. |
|
Routing direction |
Supports a practical bend path without forcing the installer to reposition the lead. |
|
Connection method |
Clarifies whether the lead will be soldered, crimped, fastened, or connected another way. |
|
Insulation or sleeving needs |
Helps align the lead attachment with handling, spacing, and assembly requirements. |
|
Nearby assembly constraints |
Identifies objects, barriers, or access limitations around the toroid connection area. |
Photos, drawings, or a short description of the installation sequence can also help us understand what the lead must do once the toroid reaches the production floor. If the assembly requires the lead to pass through a channel, meet a board-mounted terminal, or land at a fixed connector, those details should be available before the attachment is finalized. We at Torelco can then evaluate whether the requested flex lead approach supports the intended routing and connection method, rather than simply adding wire to a standard lead arrangement. That review helps turn the lead attachment into a deliberate integration feature instead of a correction made later in the build.
Review the Lead Path Before the Build Is Locked
A flex lead attachment earns its place when the lead path, termination point, or final connection on a toroid cannot be handled cleanly by a standard lead arrangement. It keeps the conversation focused on assembly integration: where the lead exits, how it must travel, what it must reach, and whether the attachment supports the way the product is actually built. The practical value is fewer late-stage workarounds, less awkward handling at the bench, and a cleaner handoff between the wound component and the rest of the assembly. When a layout requires a lead to route through a channel, land at a fixed connector, or reach a connection point that standard placement would make difficult, the attachment method should be evaluated before release. Useful review inputs include the connector location, routing constraints, lead length expectations, and handling concerns. Early review with Torelco helps determine whether a flex lead attachment is the right way to make the toroid easier to connect, install, and build consistently.
